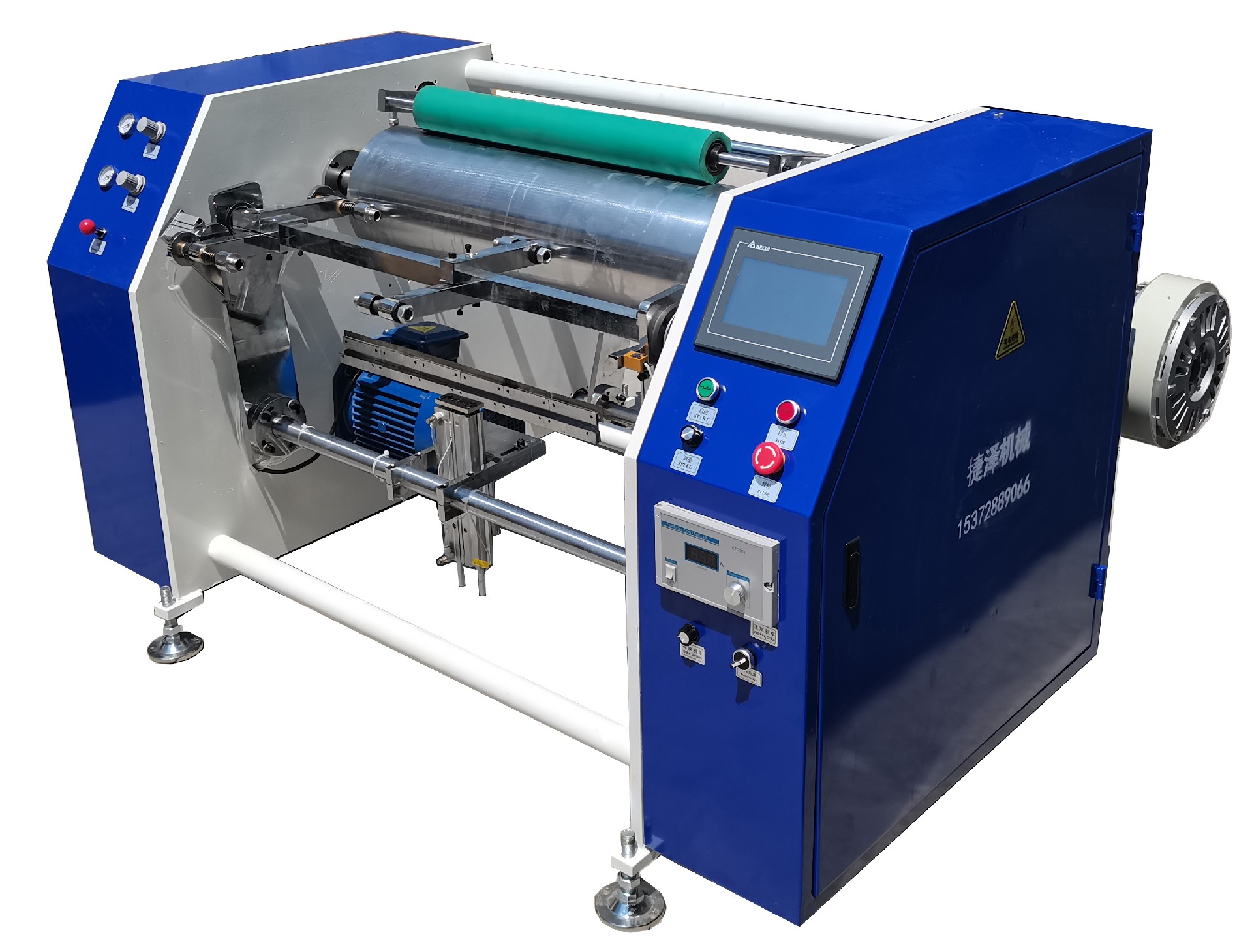

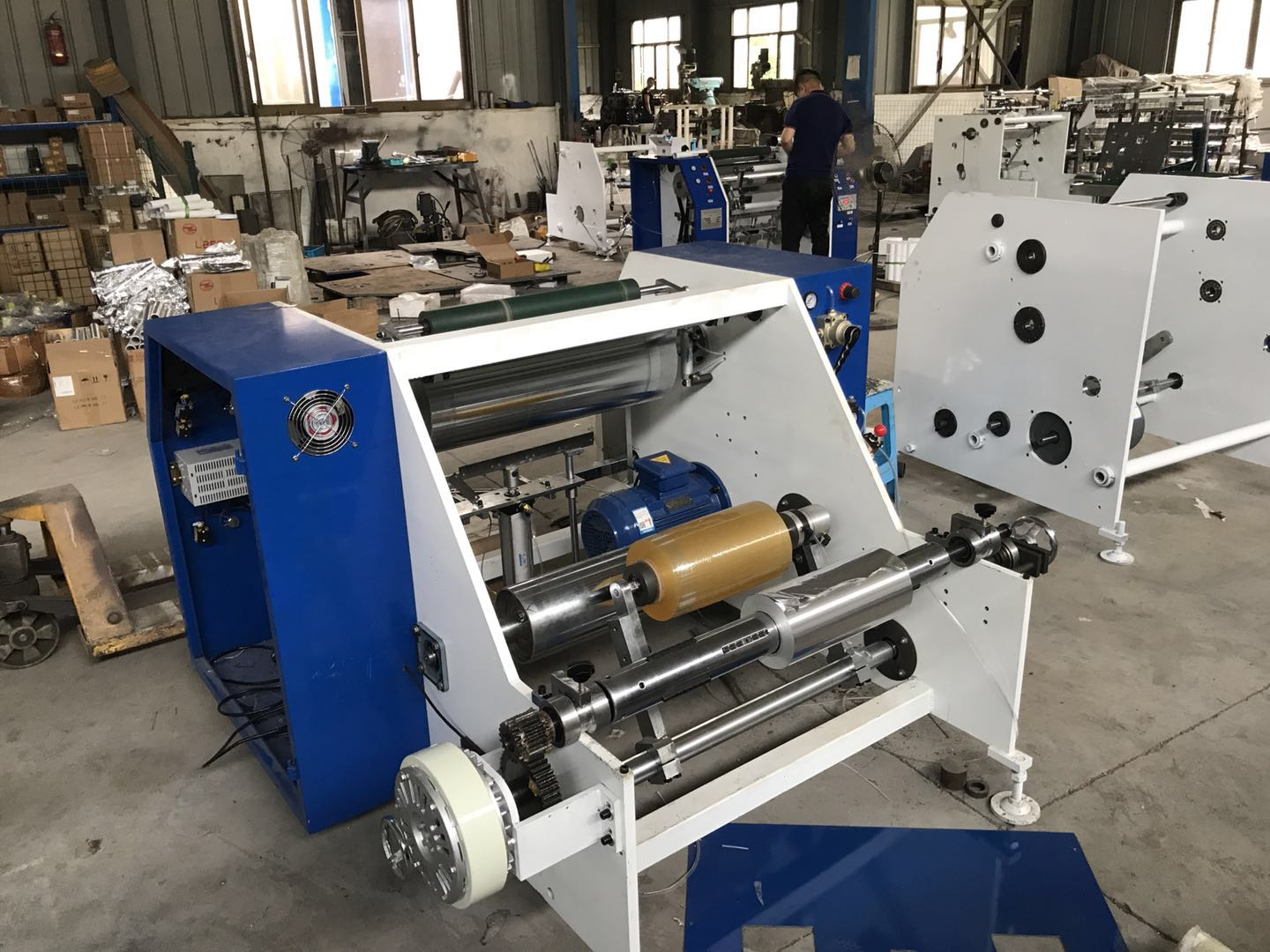

Aluminium foil and cling film rewinder
Motor | Siemens, Baide |
Inverter | Delta, Taiwan |
PLC | Omron, Japan |
Meter counter | Omron, Japan |
Relay | Schneider, Japan |
Touch screen | Delta, Taiwan |
This machine is very easy operation. No need the experience worker request
Model | JZ-500L-I |
Material | Aluminum foil , cling film |
Width of material | 100-500mm |
Max. Diameter of Jumbo roll | 800mm |
Max. Diameter of rewinded roll | 260mm |
Rewind length | 2.5-3000m/roll |
Thickness of material | 0.008-0.05mm |
Rewinding speed | 0-600m/min |
Unwinding diameter | 3 inch |
Rewind clamp holder | According to paper core size(one set free charge) |
Power of main motor | 1.5Kw |
Installation dimension | 1520 x 1250 x 1200mm |
Weight | 700kg |
