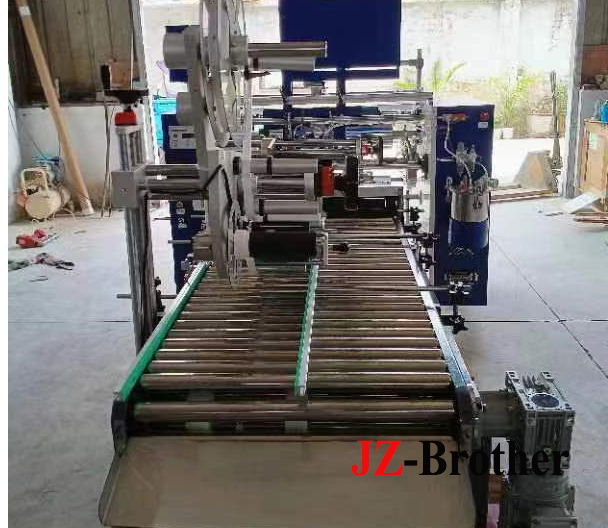

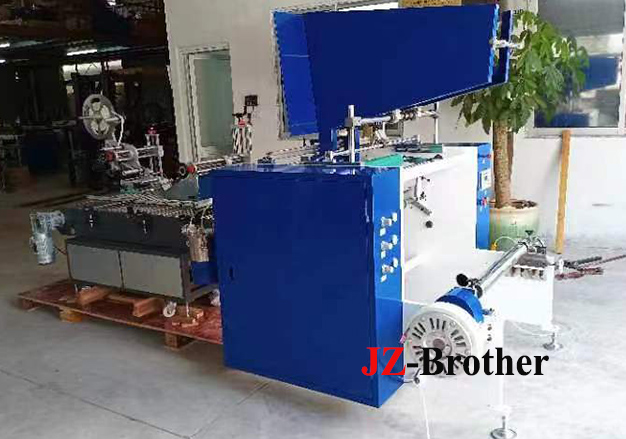

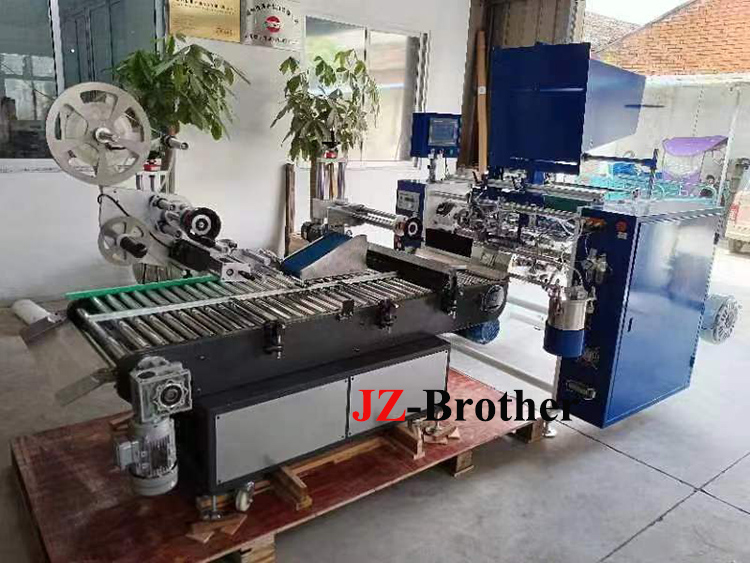

New type Automatic aluminum foil rewinder
Electronic part for the machine:
PLC | OMRON, Japan |
METER COUNTER | OMRON, Japan |
POWER SWITCH | OMRON, Japan |
INVERTER | DELTA, Taiwan |
TOUCH SCREEN | DELTA, Taiwan |
LOW VOLTAGE APPARATUS | SCHNEIDER, Japan |
Parameters： | |
Model | JZ-500L-4S |
Material | Aluminum foil, baking paper |
Width of material | 300-500mm |
Max.dia of Jumbo roll | 800mm |
Rewinding length | 2.0-150 m/min |
Thickness of the foil | 0.008-0.05mm |
Speed | 0-200 m/min |
ID of Jumbo roll | 3 inch（76mm） |
ID of of paper core size | Customerized |
Power of main motor | 2.2 KW |
Overall dimension | 1520 x 3000 x 2200mm |
Weight | 2T |
