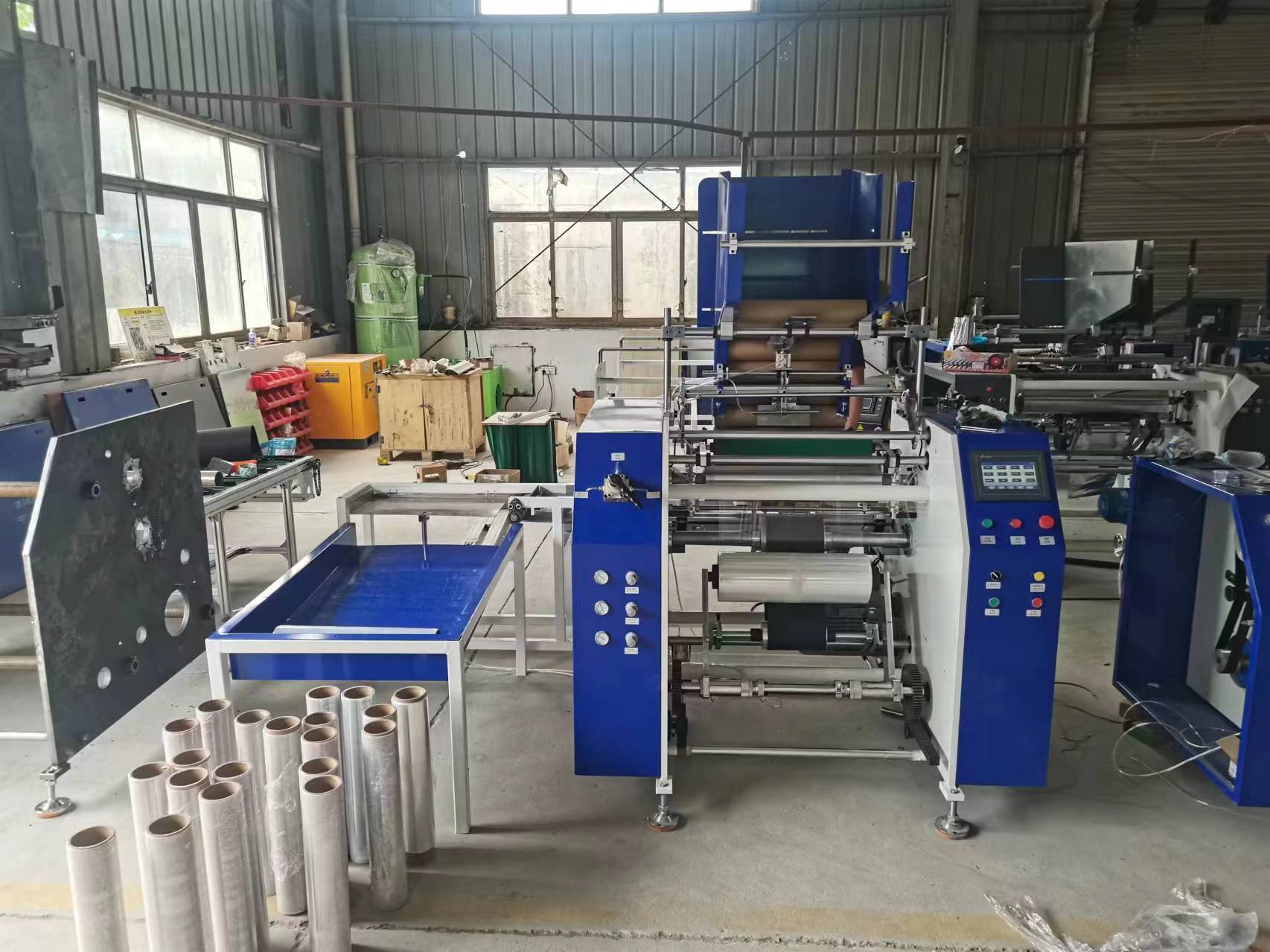

500mm Auto Stretch Film Rewinder
Electronic part for the machine:
PLC | OMRON, Japan |
METER COUNTER | OMRON, Japan |
POWER SWITCH | OMRON, Japan |
INVERTER | DELTA, Taiwan |
TOUCH SCREEN | DELTA, Taiwan |
LOW VOLTAGE APPARATUS | SCHNEIDER, Japan |
Iten munber | JZ-500A |
Width of the film | 280-500mm |
Max. Diameter of Jumbo roll | 400mm |
Max. Rewinded length | 0-1000m/roll |
Thickness of the film | 0.01-0.05mm |
Rewinding speed | 0-900m/min |
Main motor | 4kw |
Packing size | 1560X1460X1670mm |
Function
1. Material loading | Pneumatic control hand valve control |
2. Rewind paper core | Computer control auto paper core feeding |
3. Winder exchange | Auto film cutting, exchanging |
4. Meter counter, Roll counter | Auto meter counter, batch counter |
5. Unload of rewinded roll | Pneumatic control auto unwinding |
6. Products stacker | 1 pc of auto stacker(option: conveyor belt) |
