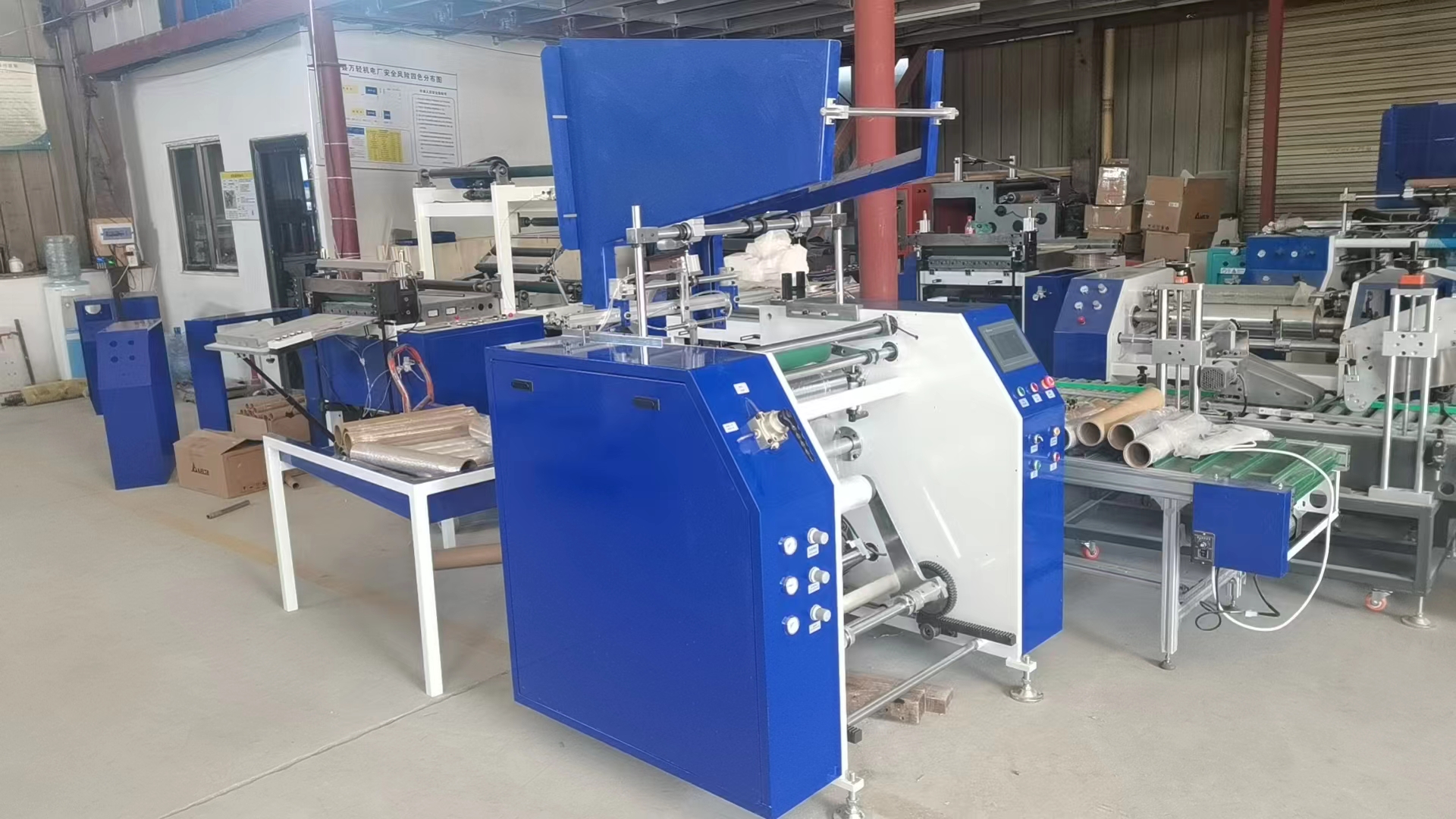

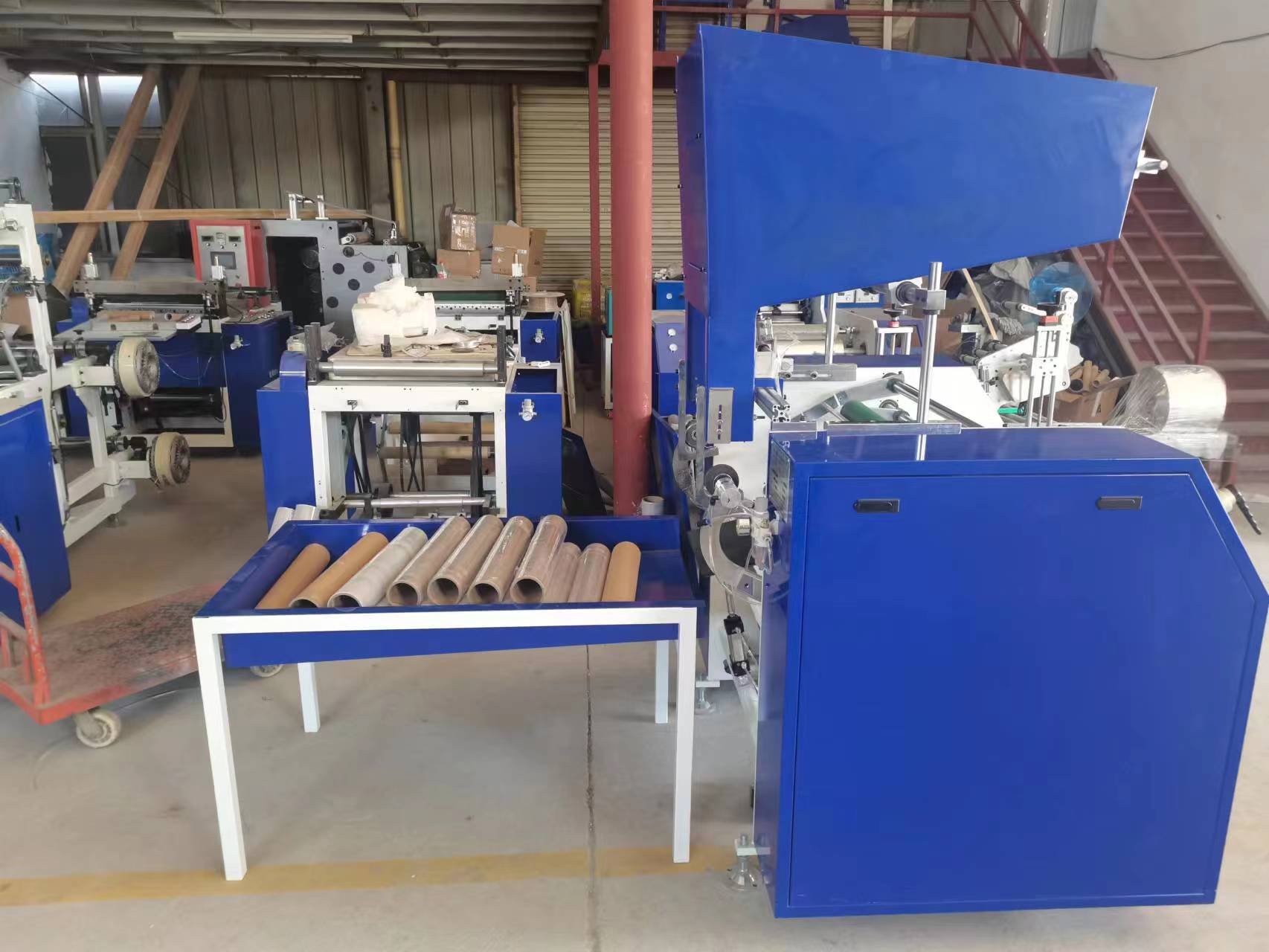

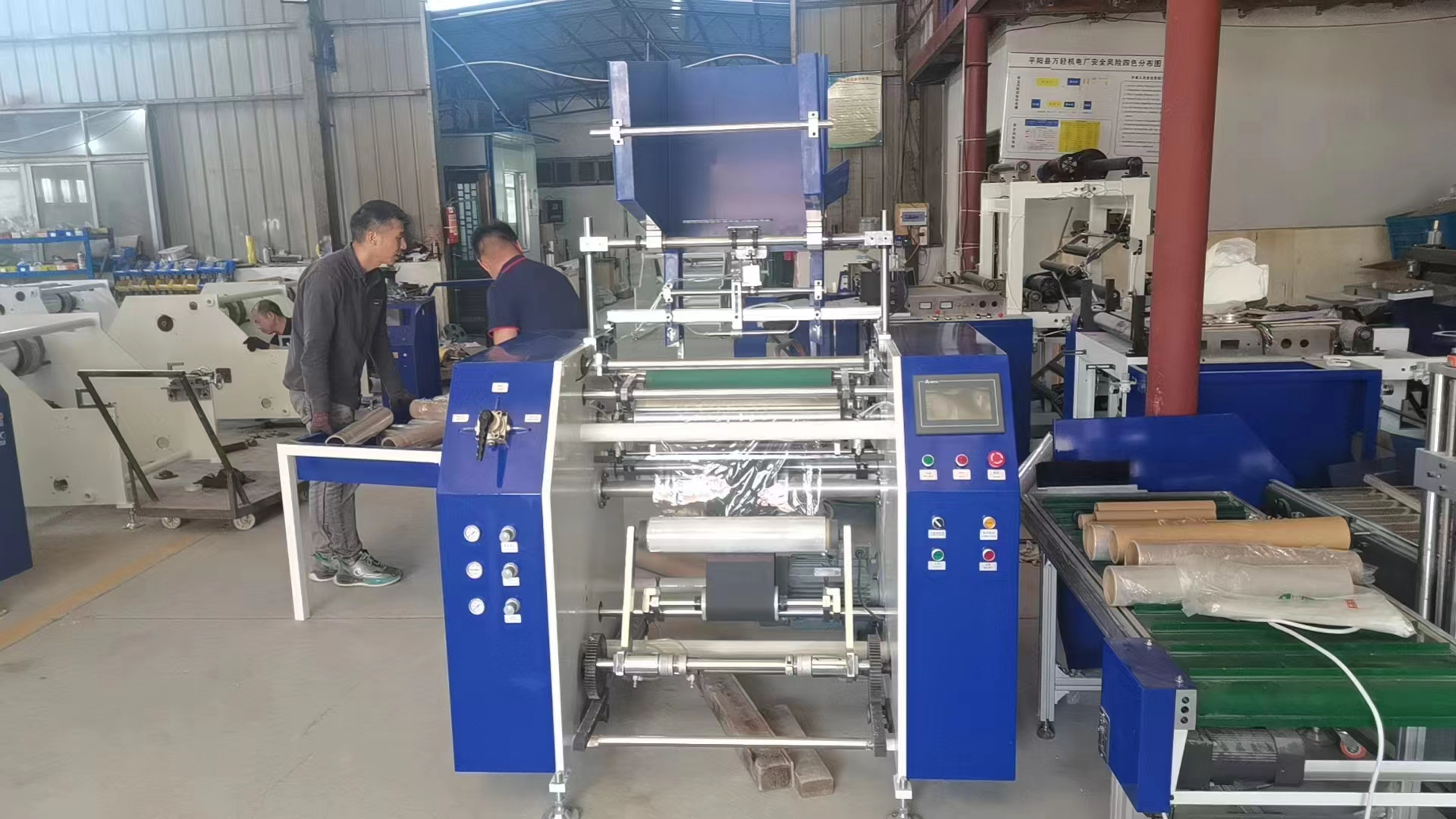

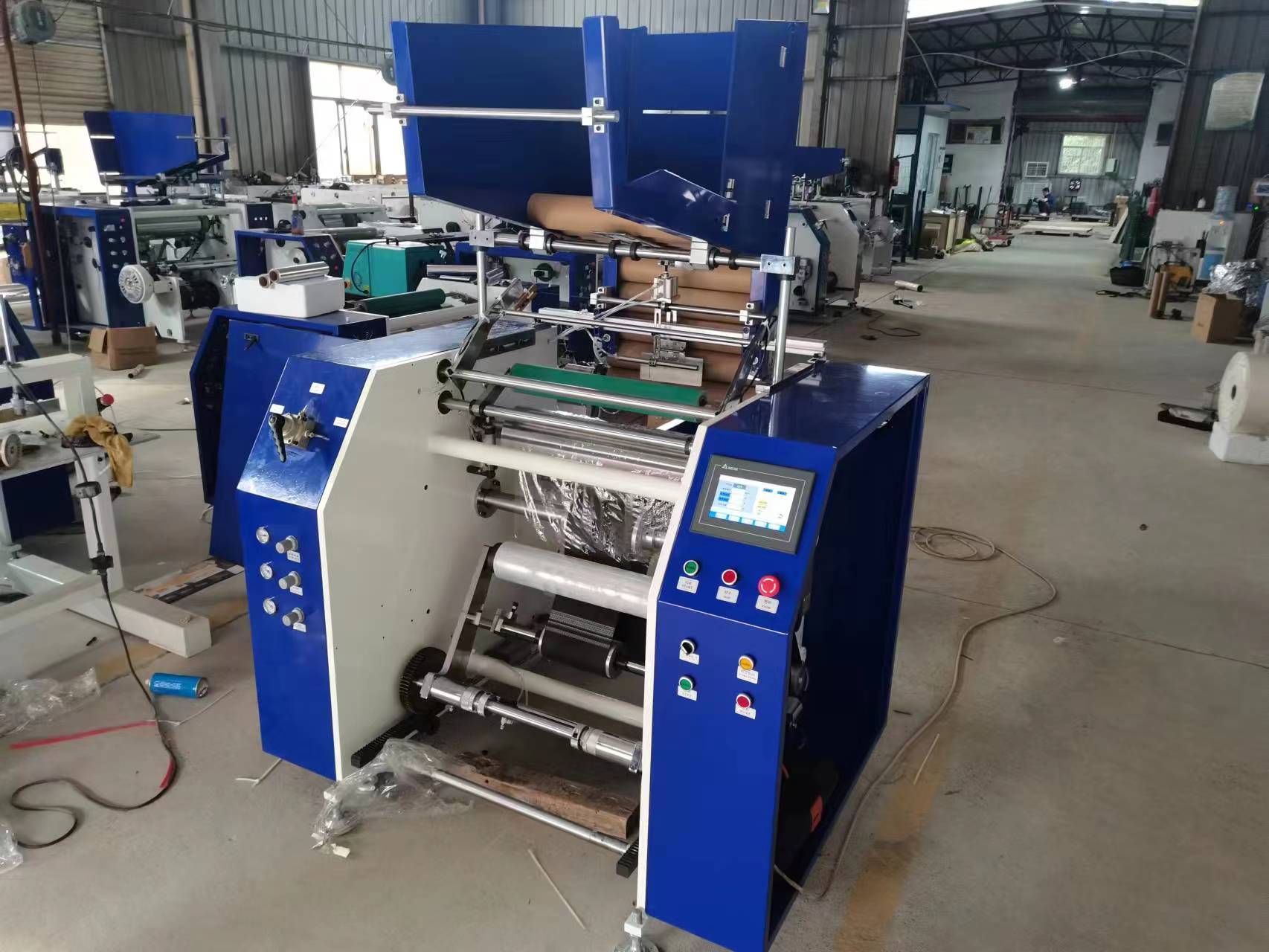

Automatic stretch film rewinder
Enquiry nowElectronic part for the machine:
PLC
OMRON, Japan
METER COUNTER
OMRON, Japan
POWER SWITCH
OMRON, Japan
INVERTER
DELTA, Taiwan
TOUCH SCREEN
DELTA, Taiwan
LOW VOLTAGE APPARATUS
SCHNEIDER, Japan
Iten munber | JZ-500A |
Width of the film | 300-500mm |
Max. Diameter of Jumbo roll | 400mm |
Rewinded length | 5-300m |
Thickness of the film | 0.01-0.05mm |
Rewinding speed | 0-600m/min |
Main motor | 4.0kw |
Function
1. Material loading | Pneumatic control hand valve control |
2. Rewind paper core | Computer control auto paper core feeding |
3. Winder exchange | Auto film cutting, exchanging |
4. Meter counter, Roll counter | Auto meter counter, batch counter |
5. Unload of rewinded roll | Pneumatic control auto unwinding |
6. Products stacker | 1 pc of stacker |
