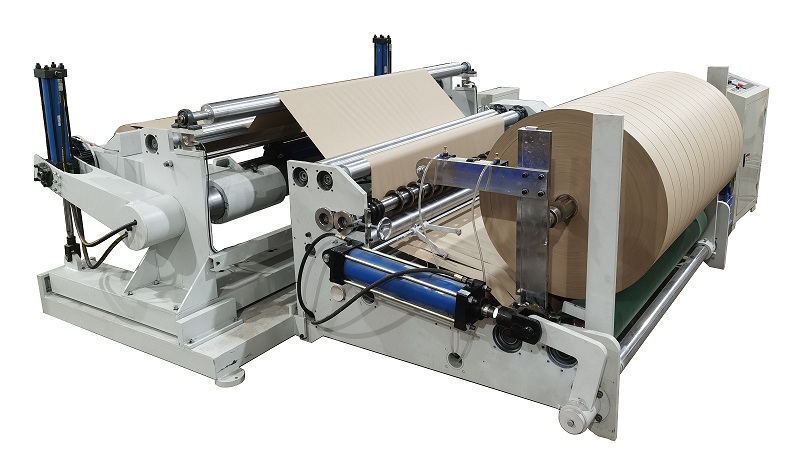

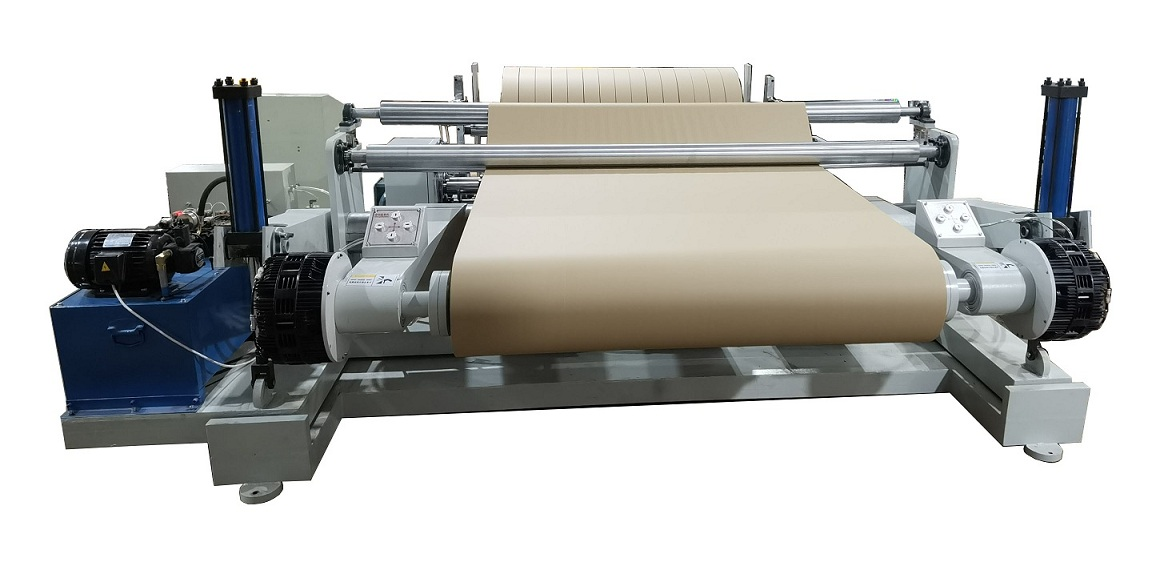

Paper roll slitter rewinder
FEATURE:
1. Two blades cutting; thicken blade
2. The two side of the paper will be smooth after the cutting, without any burring
3. Tray paper will be tidy with two sides feat
4. With the computer rectified system and it can rectified automatically
5. All the operation will be finished on the panel with ease operation
6. With high capacity, the single machine can be provided for three sets of reel-pipe machine
7. S.S structure body; beautiful performance;
8. Pneumatic discharge with easy operation.
9. Double magnetic powder brake control, and with equally tension.
技术参数 | Technical Parameter | |||
分切宽度 | 25-1600 mm | Jumbo roll width | 25-1600 mm | |
最大放卷直径 | 1500 mm | Un-winder diameter | 1500 mm | |
最大收卷直径 | 1300 mm | Re-winder diameter | 1300 mm | |
分切速度 | 0-300 m/min | Slitting speed | 0-300 m/min | |
分切能力 | 60-600 g | Slitting range | 20-900 g | |
卷绕方式 | 气胀内收式 | Re-winding method | stalk involution | |
切刀数量 | 21付 | Blade quantity | 21 pairs | |
上纸方式 | 液压上纸 | Load paper roll | Pneumatic way | |
调速控制 | 变频器 | Speed adjust | Transducer | |
输入电源 | 380V 三相四线 | Power supply | 3*380V | |
尺寸重量 | Mainframe & Weight | |||
放卷部分 | 1300*3000*1200 mm | Un-winder part | 1300*3000*1200 mm | |
收卷部分 | 2300*2800*1400 mm | Re-winder part | 2300*2800*1400 mm | |
上刀规格 | 110*65*4 | Up-blade | 105*65*4 | |
下刀规格 | 110*65*4 | Low-blade | 105*65*4 | |
整机重量 | 3000 KGS | Weight | 3000 KGS | |
附送配件 | Accessories | |||
应用工具 | 一套 | Useful tool | 1 set | |
扳手 | 内、外六角扳手 | Wrench | Hex wrench | |
控制系统 | Control system | |||
PLC 控制器 | 台达 DVP12SA | PLC controller | Delta | |
触摸屏 | 昆仑通态 TPC7062 | Touch screen | MCGS TPC7062 | |
变频器 | 安川 | transducer | Yaskawa | |
电器产品 | 正泰 | Electrical product | Schneider | |
信号元件 | 上海沪工 | Signal part | Omron | |
气动元件 | 亚德客 | Pneumatic part | AIRTAC | |
传动系统 | Driving system | |||
主机功率 | 15 KW | Main motor | 15 KW | |
液压电机功率 | 2.2 KW | Load paper power | 2.2 KW | |
纠偏电机 | Y110 60:1 | Correction motor | Y110 6:1 | |
收卷减速机型号 | WPA155 | Winding reducer | WPA155 | |
装料减速机型号 | WPA120 | Load paper reducer | WPA120 | |
传动方式 | 联轴式 | Driving way | Connected bearing | |
配备装置 | Equipped devices | |||
上纸 | 自动液压上纸 | Load paper way | Automatic hydraulic | |
下料 | 自动液压下纸 | Unload paper way | Automatic hydraulic | |
张力制动控制 | 自动双磁粉刹车 | Tension control | Automatic magnetic way | |
调刀方式 | 自动调刀 | Blade setting | Automatically | |
使用说明书一份 | One instruction manual |
